PM-410

MANUAL GATES

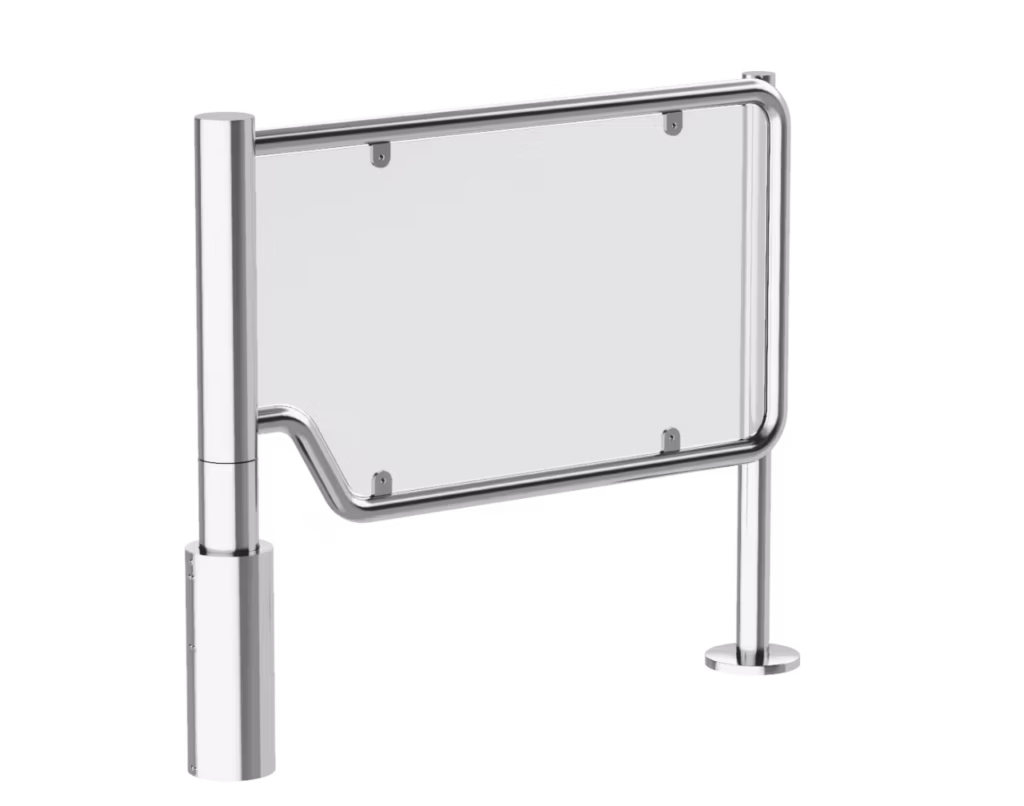

Hand-operated swinging gate with special width dimen- sions, perfect for suppliers and people with reduced mobility, or in wheelchair. Unidirectional or bidirectional operation depending on the model. This model is suitable for both indoors and outdoors installations always controlled by security personnel.

Validation

Discretionary remote opening.

PASSAGE

  • Mechanical mechanism.
  • Control de paso unidireccional o bidireccional. (Ver versiones).

SECURITY

Unidirectional or bidirectional passage control. (See versions).

MANUFACTURING

Pedestal made of AISI- 304 or AISI-316 stainless steel.

Swinging panel in stainless steel tube with a transparent polycarbonate plate in the central part. (see versions).

Support post and stop for the electro-magnetic lock. Cable entry for the lock power supply. (see versions).

Installation

In the event of a power failure, the electromagnetic lock unlocks, allowing the panel to be pushed freely, or leaving the panel open at 90o in the case of the PM-405 model.

to bE ProVidEd by thE buyEr

  • Electrical power supply.

  • Electrical wiring for power supply, command and control.

  •  Adequacy of the floor where it is to be installed.

  • Data sheet

    Material

    AISI 304 or 316 Stainless Steel

    Power supply

    100-240 VAC 50/60Hz

    Working voltage

    24 VDC

    Operating temperature

    -10º a + 50º

    Maximum Consumption / Rest

    15 W

    Humidity

    90%

    Net weight

    20 kg

    Shock absorbel

    Adjustable hydraulic

    * El Consumo Máximo indicado no tiene en cuenta accesorios opcionales.

  • PM-410

    BLUEPRINTS
