PM-902S

Speed Gates

Smart and touchless speedgate composed of two cabinets with swinging panels. Once the equipment receives the opening order, it swings its panels towards the direction of the passage, allowing the user to pass through, and closing again once the passage has been completed. Its great functionality and low maintenance, make it especially suitable for controlling enclosures with large numbers of people located ndoors with minimal surveillance.

Validation

  • Compatible with any type of validation system.
  • Possible operation via dry contacts, via RS232, RS485 ModBus and Ethernet. TCP/IP protocol available.

PASSAGE

  • Motorized Operation
  • Bidirectional control of passage

SECURiTY

  • Anti-panic system, with door opening in case of emergency.
  • Security photocells prevent the panel from closing and hitting the user while he/she is in the corridor.
  • It also detects intrusions by unidentified persons via acoustic alarm signals.

MANUFACTURiNG

  • Cabinet made of AISI-304 or AISI 316 stainless steel, 1.5 mm thick and satin finish.
  • Cabinet structure with suitable measurements to house validation readers, as well as control elements or pictograms, among others.
  • Electromechanical assembly comprising: Brushless motor, worm gear speed reducer, greased for life.
  • Swing tempered glass barriers.
  • The equipment has security locks and side doors and covers to facilitate access, maintenance and installation.

ELECTRONiCS

  • Universal power supply range. (100- 240 VAC 50/60 Hz).
  • Easy configuration of the main parameters of the equipment via switches.
  • Upgradable firmware for new functionalities.

SAFETY CONDiTiONS

In an emergency, this unit is equipped with an anti-panic device, which, in a power cut, will unblock the panels allowing it to be manually pushed in either of the access directions, leaving the passage clear and obstacle free in both directions.

INSTALLATiON

The equipment is supplied fully assembled and is fixed to the floor using the base plate and screws with expansion plugs. Cable entry is through the base of the unit.

The access gates must be interconnected so the corresponding connection duct must be planned for.

OPERATiON

Each passage allows for different modes of operation. The most significant are:

a. Free access.

b. Controlled access, with electric opening by any type of validation system.

c. Closed access.

TO BE PROViDED BY THE BUYER

  • Electrical power supply.
  • Electrical wiring for power supply, command and control.
  • Adequacy of the floor where it is to be installed.
  • Connection between cabinets for wiring.

  • Data sheet

    Material Body

    AISI 304 or 316 Stainless Steel

    Power supply

    100-240 VAC 50/60Hz

    Working voltage

    24 VDC

    Operating temperature

    -10o a + 50o

    Maximum Consumption / Rest

    80 W

    Humidity (non- condensing)

    90%

    Net weight

    65 Kg.

    Security level

    Medio / Alto

    Millions of cycles between failures

    Hasta 10 M

    Steps / minute

    Up to 45

    * El Consumo Máximo indicado no tiene en cuenta accesorios opcionales.

    CABINET ADAPTATIONS

    • Adaptation of readers on the surface or inside the cabinet, depending on its dimensions and characteristics.
    • Possibility of making adaptations to the cabinet, according to the customer’s needs.

    VISIBILITY AND AESTHETICS

    1. Indicative pictograms.

    2. Front pictograms.

    3. LED strips.

    4. Top cover available in different materials.

    5. Possibility of painting the equipment in different colours according to RAL chart

    SECURITY

    1. Possibility to customise the height and width of the panels up to recommended limits.

    2. Emergency battery kits

    PROTECTION FOR OUTDOORS

    1. Not recommended for outdoor use.

    2. AISI 316 stainless steel for indoor environments where humidity, salinity and/or corrosion are present.

    COMPLEMENTS

    See accessories section in the general catalogue.

    • Capacity control systems integrated in the equipment itself or through software.
    • Passage counters, card-swallowing mailboxes and command and control consoles.
    • Fixed or removable railings for enclosing or forming walkways.

  • PM-902S

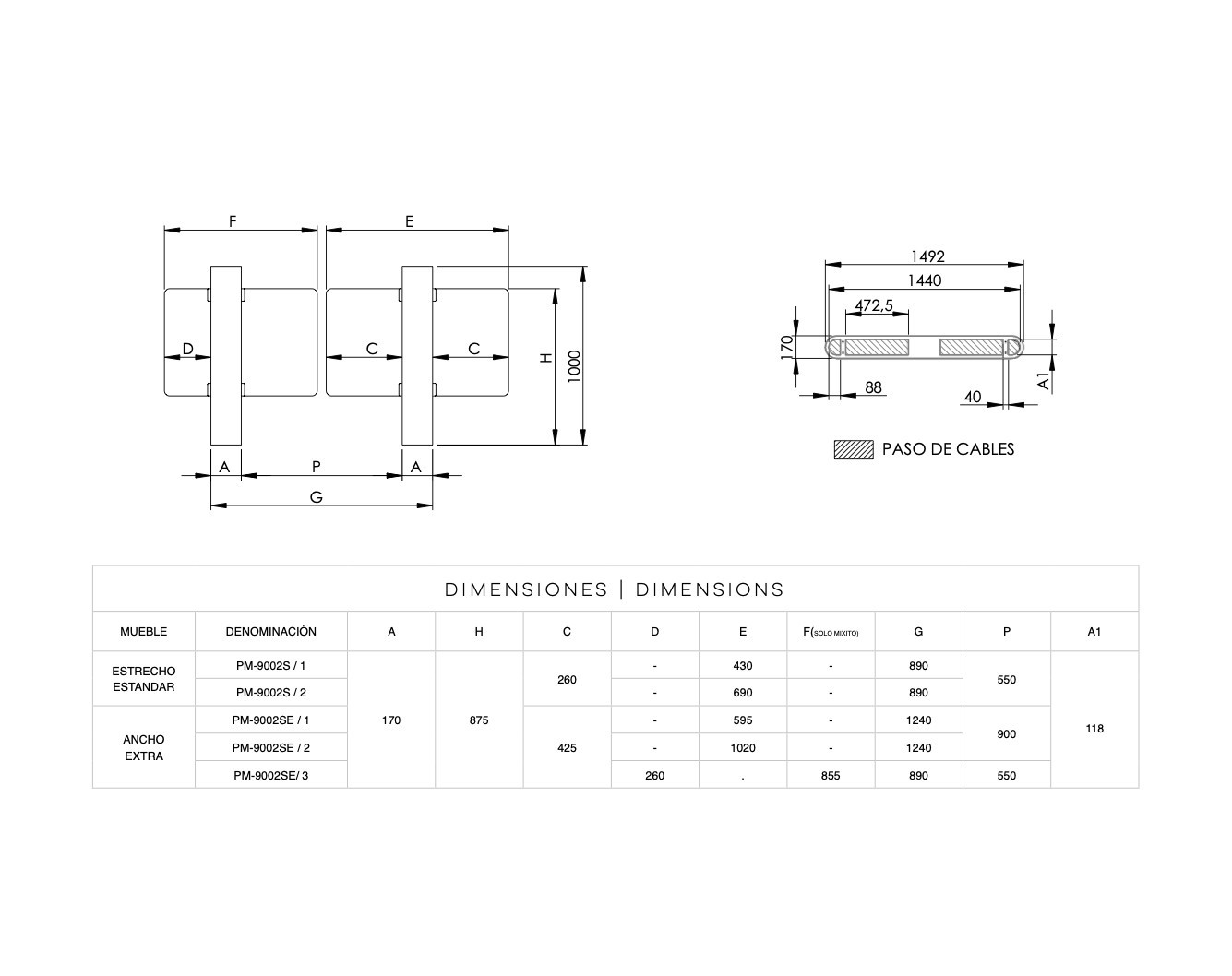

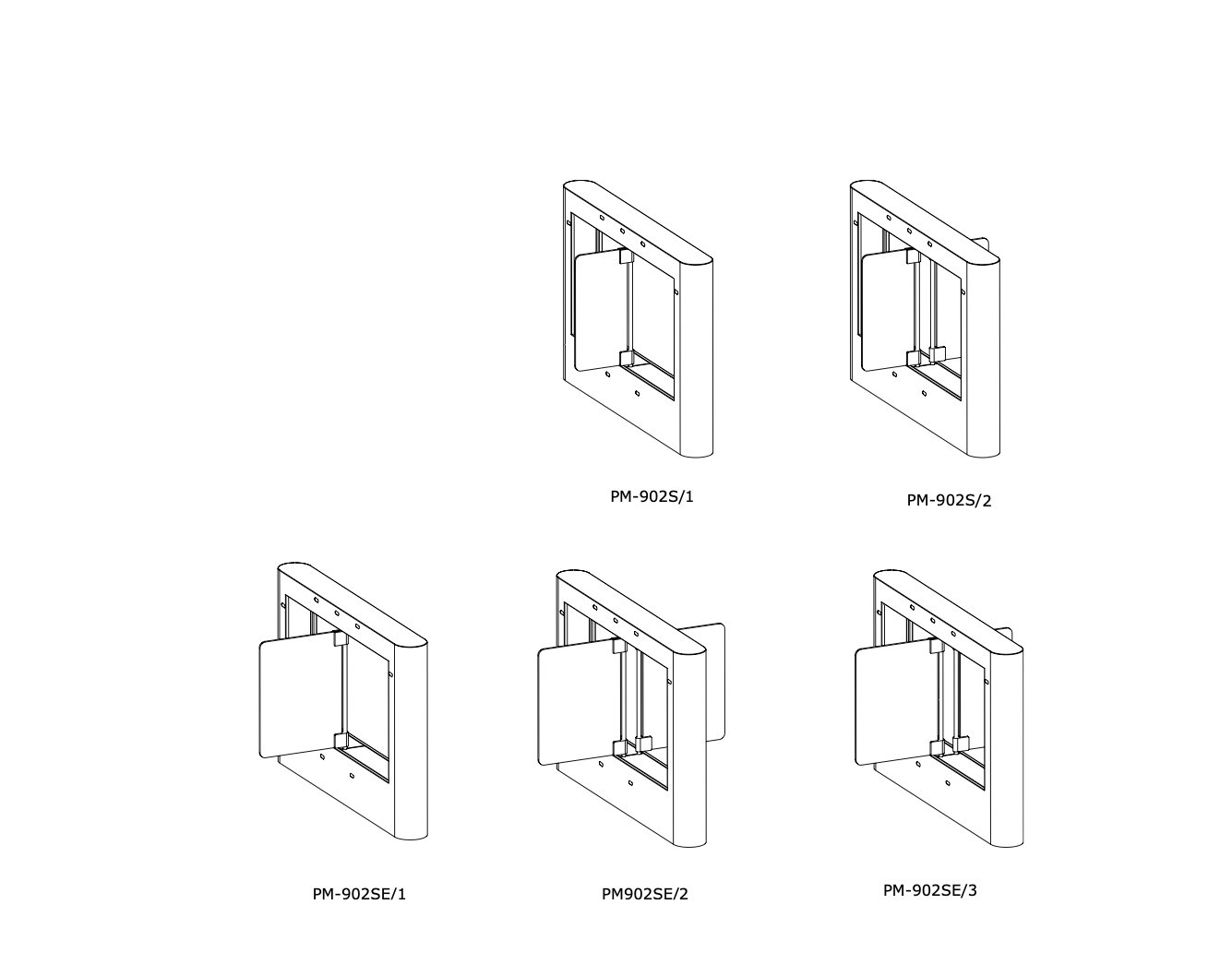

    BLUEPRINTS
